Charvel Pro-Mod San Dimas Style 1 HH FR

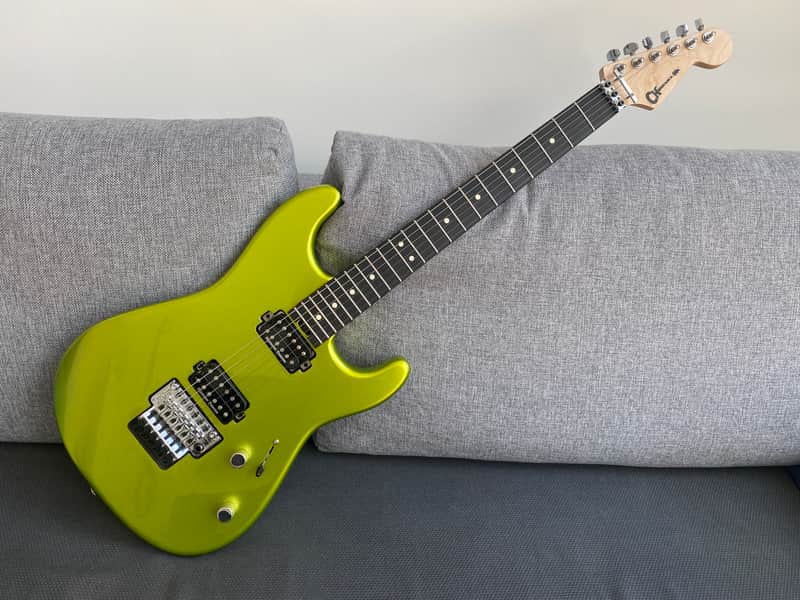

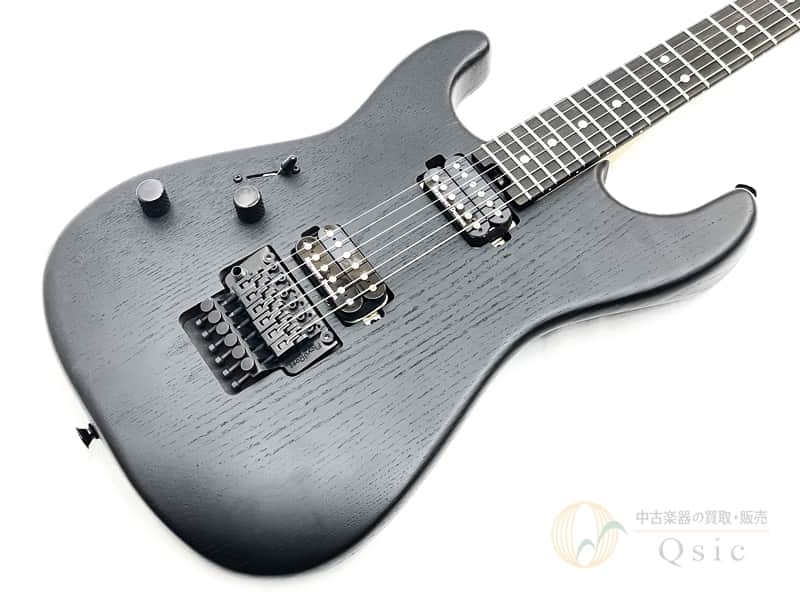

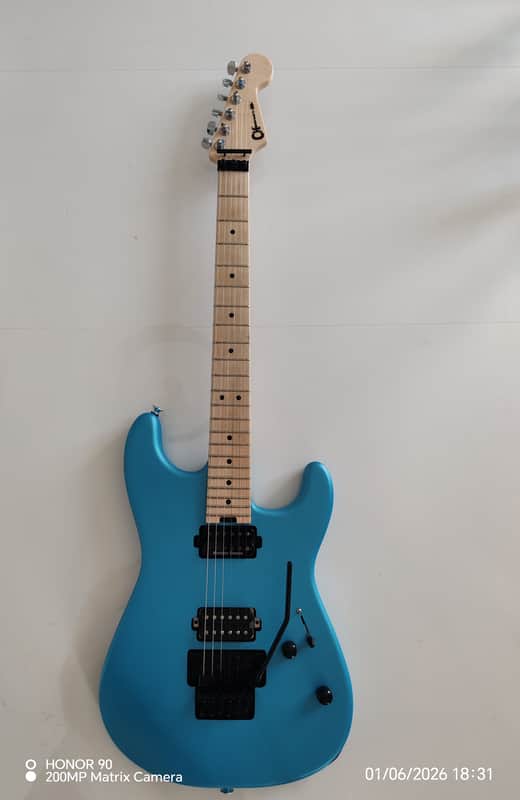

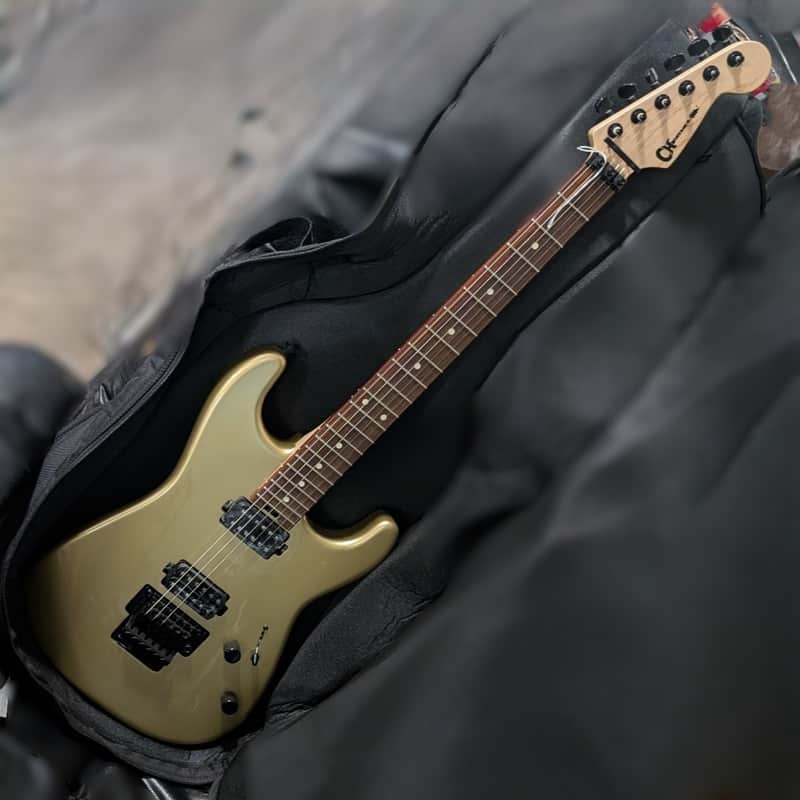

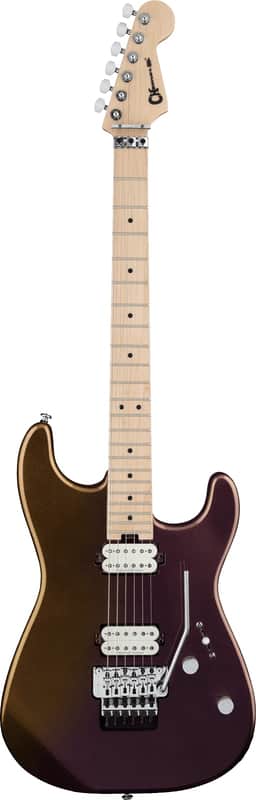

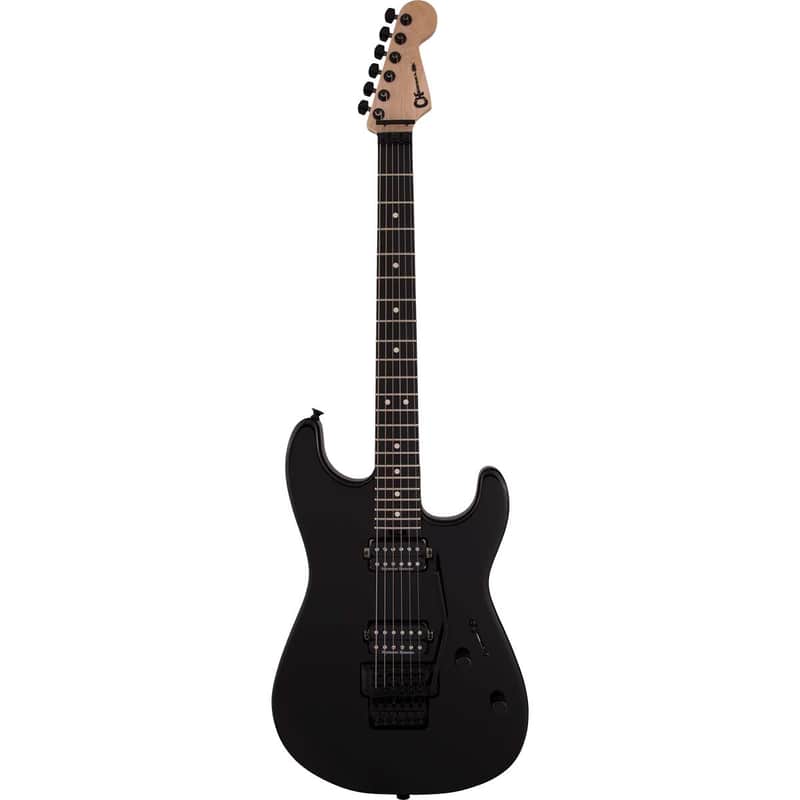

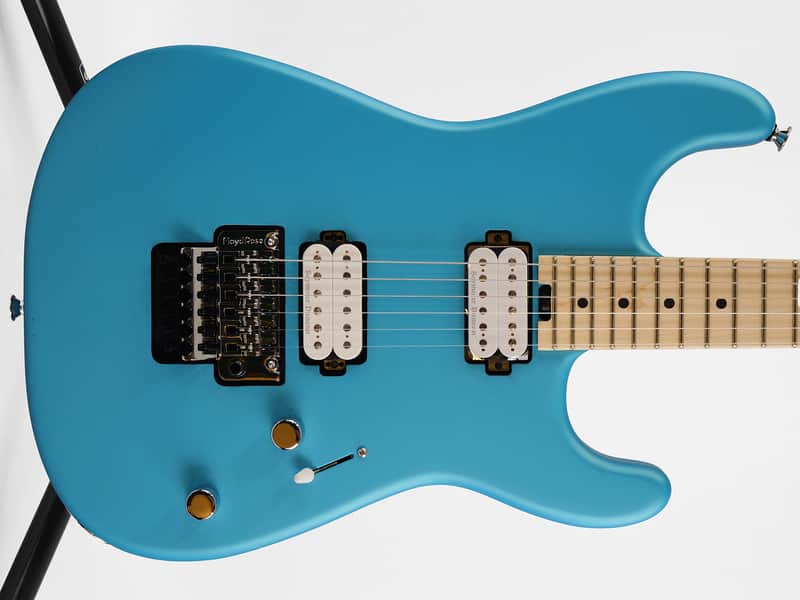

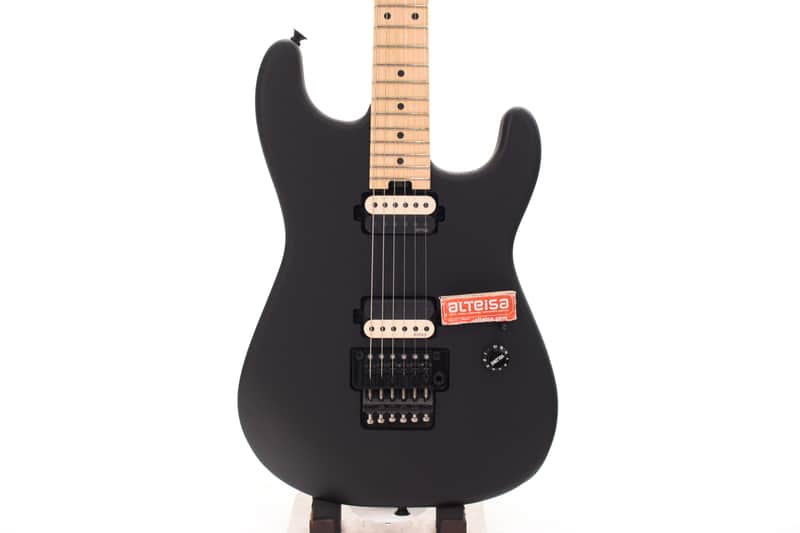

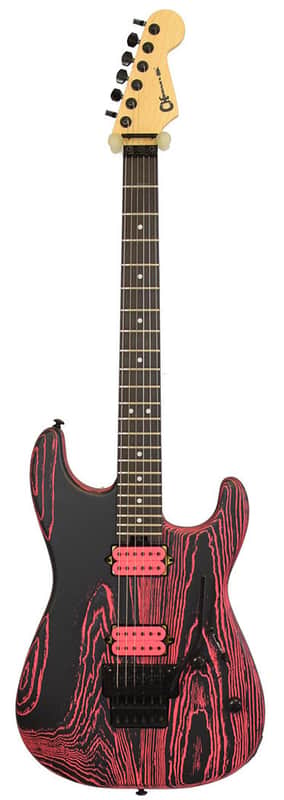

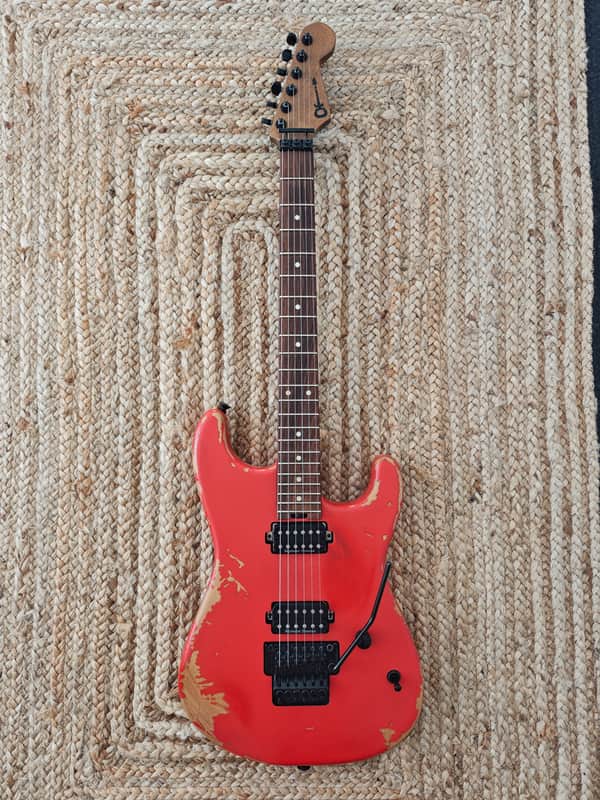

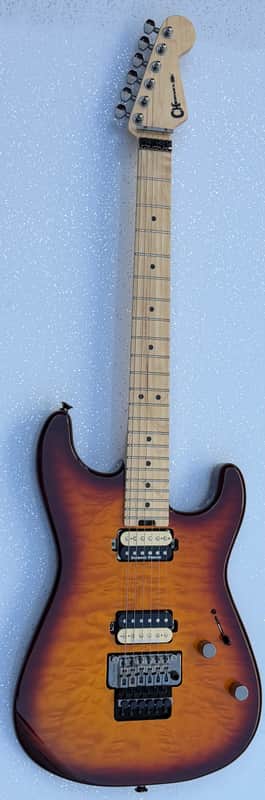

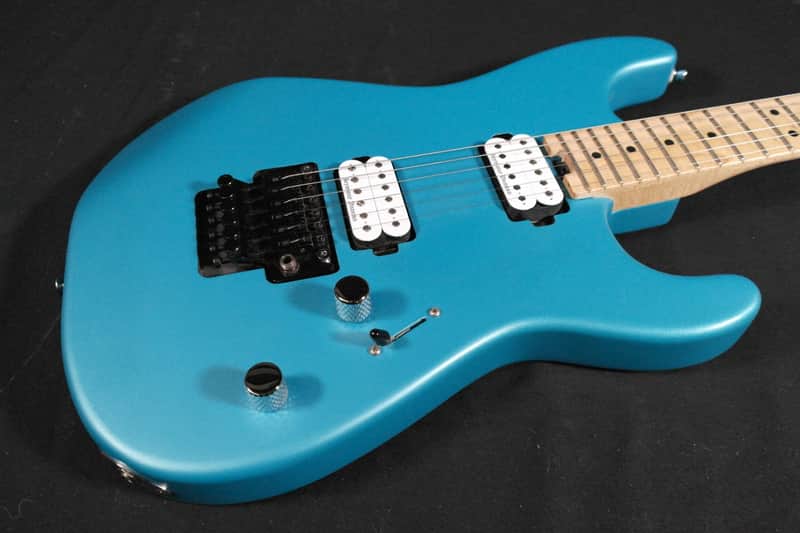

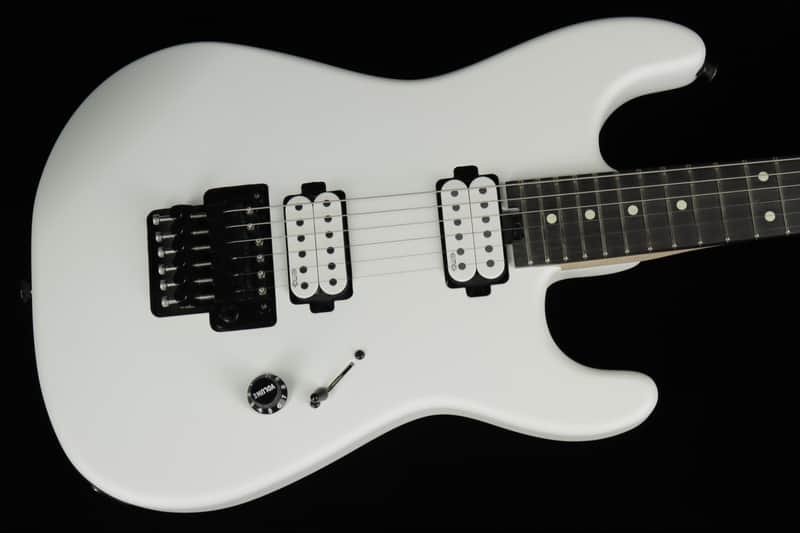

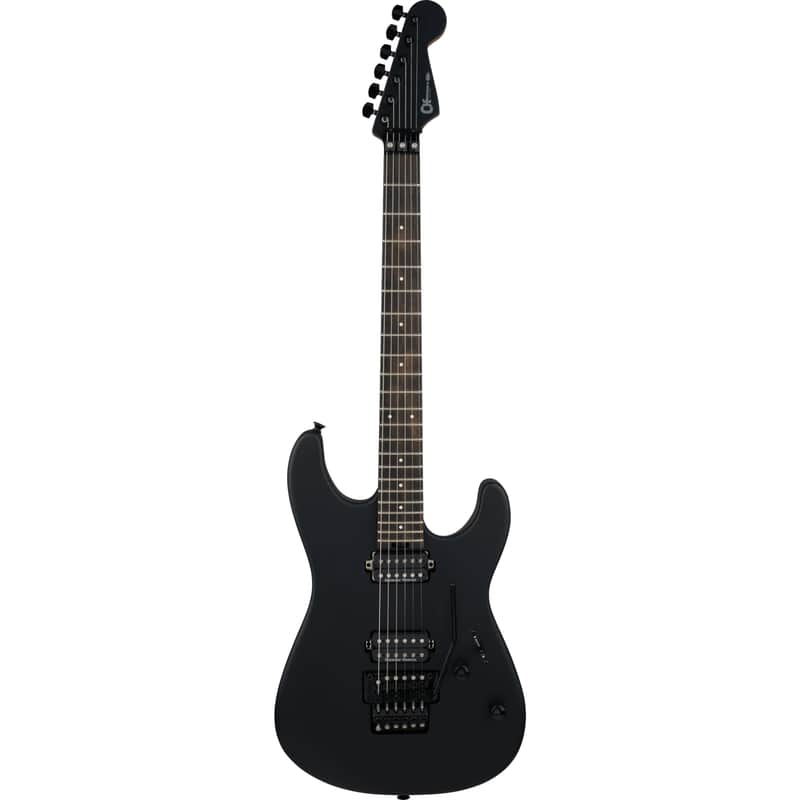

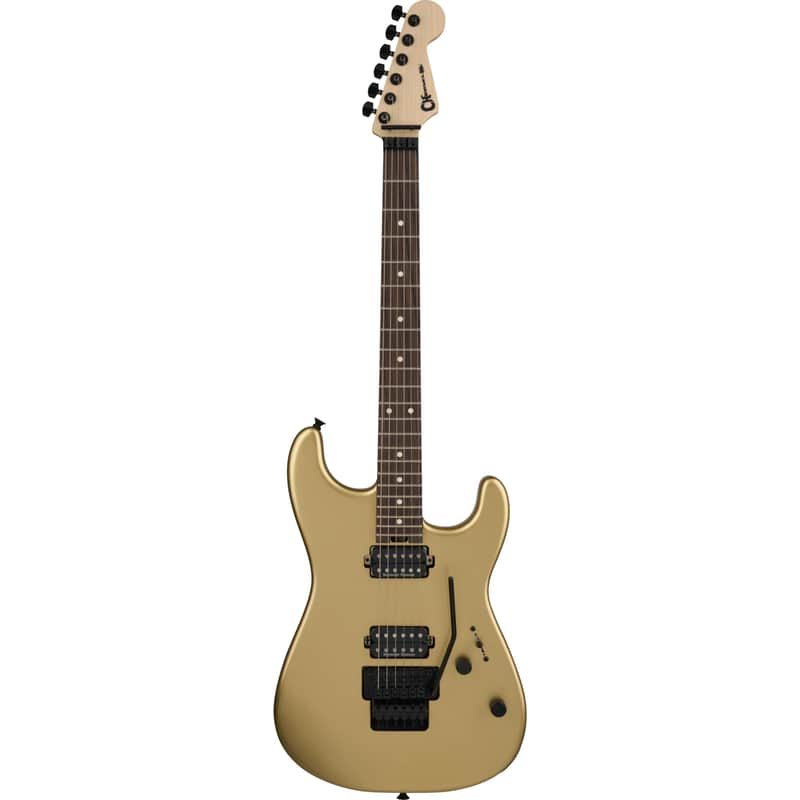

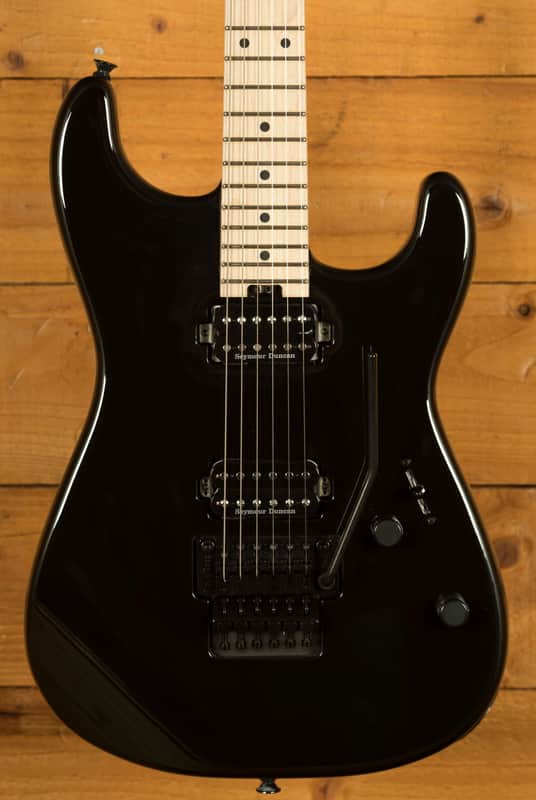

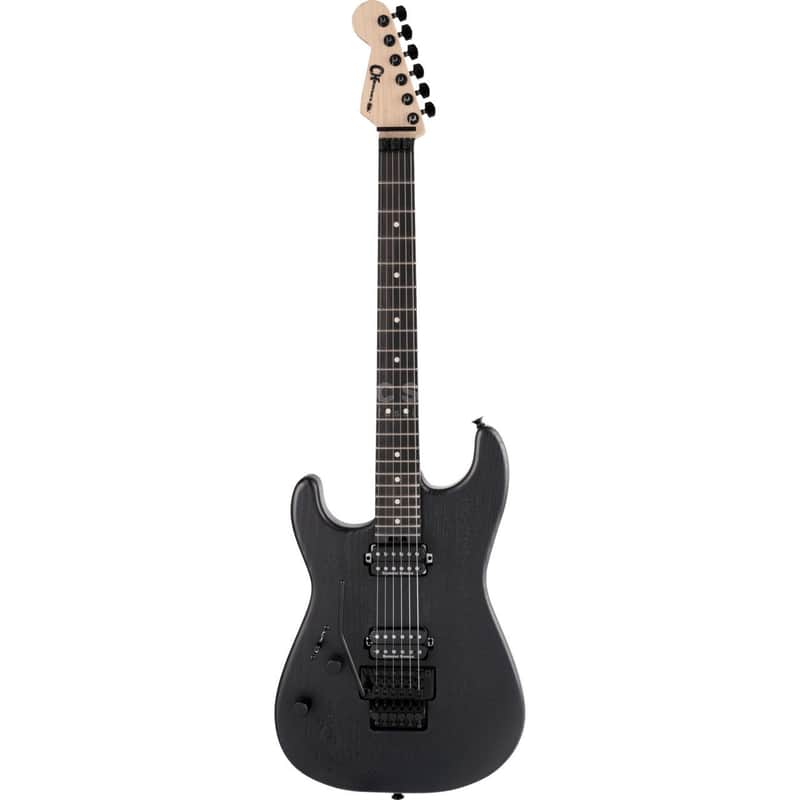

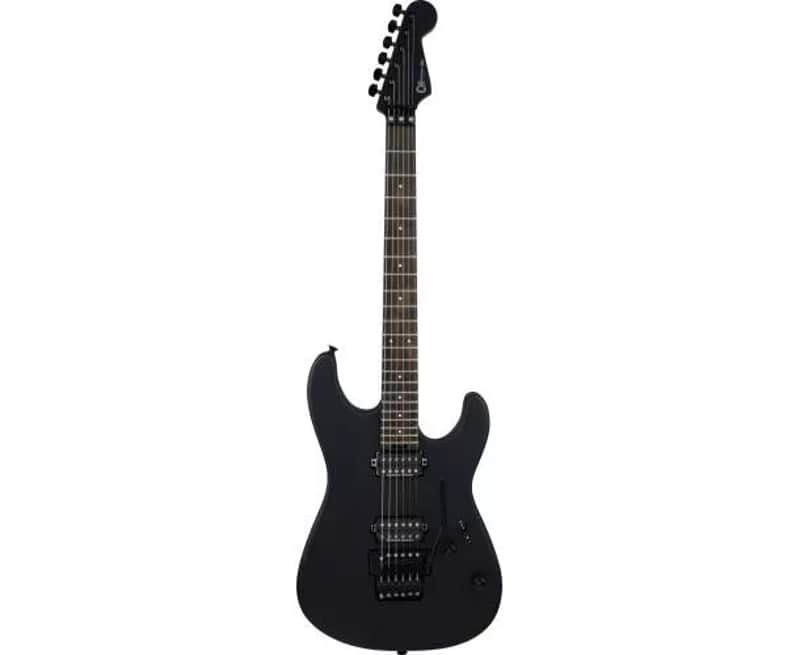

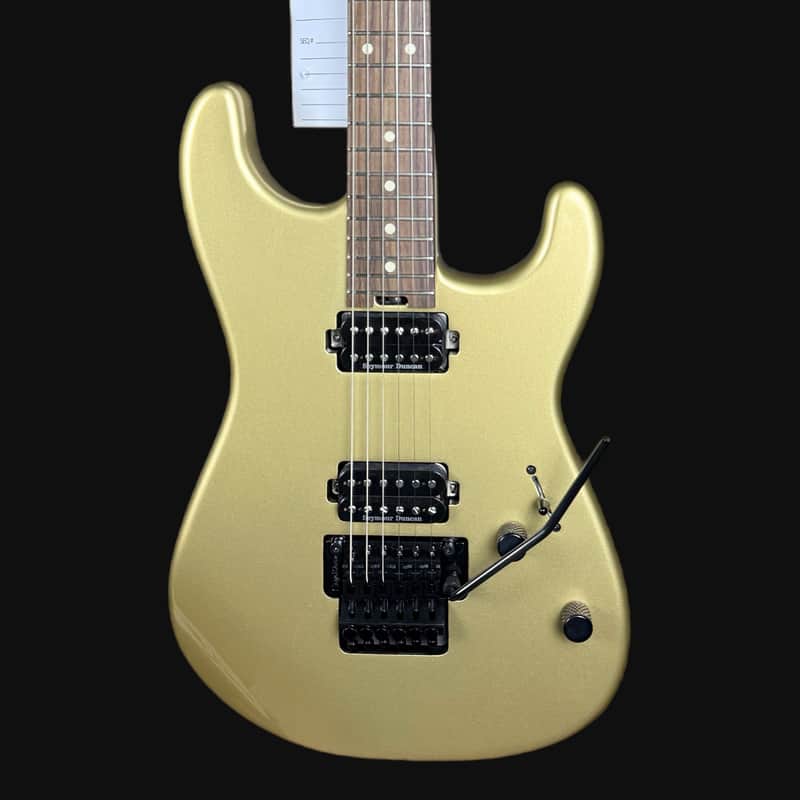

Generic depiction of the instrument model, not the specific item offered on a linked platform.

Electric Guitar

Charvel Pro-Mod San Dimas Style 1 HH FR

Charvel · Pro-Mod San Dimas Style 1 HH FR

Price: 693 EUR – 1.727 EUR

Price history 07.09.2026 19.09.2026
Cheapest seen Most expensive seen

Availability: 9/10 (Common)

A modern callback to the exact shop and city that gave the superstrat its name: alder body, compound-radius bolt-on maple neck with a Speed Neck profile, and a Floyd Rose 1000 Series double-locking tremolo. San Dimas, California is not a generic reference here - it's the literal town Wayne Charvel's shop relocated to in the 1970s, the same shop that supplied the parts Eddie Van Halen assembled into his Frankenstrat.

Where available? Go to the best price – 693 EUR About this instrument

About the Charvel Pro-Mod San Dimas Style 1 HH FR

The San Dimas Style 1 name is a genuine place reference rather than a marketing invention: San Dimas, California is where Wayne Charvel relocated his repair-and-parts shop after a year in nearby Azusa, and it's the location now widely credited as the actual birthplace of the shredder guitar. This Pro-Mod version updates that 1980s San Dimas recipe with modern conveniences - a compound 12-to-16-inch fingerboard radius, rolled fingerboard edges, a heel-mounted truss rod wheel, and graphite reinforcement rods in the bolt-on maple neck to resist warping - while keeping the rounded 'hot-rodded Strat' body contour and Floyd Rose locking tremolo that defined the original.

The electronics carry one specifically boutique detail worth understanding: the no-load tone control. Turned fully up, it disconnects the tone circuit's capacitor from the signal path entirely rather than just minimising its effect, giving maximum brightness and output at that setting rather than the slight treble roll-off a conventional tone pot leaves even at full volume. Combined with a push-pull coil-split built into the volume knob, the HH pickup pairing has genuine range beyond straightforward humbucker duty.

Where to buy

Some links below are affiliate links. We may earn a commission at no extra cost to you.

Source: https://reverb.com/item/98074746-charvel-pro-mod-san-dimas-style-1-hh-fr-sassafras-left-handed-electric-guitar-satin-black-b-stock

Sound character of the Charvel Pro-Mod San Dimas Style 1 HH FR

The tight low end handles Eddie Van Halen-style metal-boogie riffs and percussive djent-style rhythms with equal toughness and clarity. Reviewers specifically note that despite the no-load tone control's typically brighter character, the guitar never turns shrill - instead delivering a clarity that lends the humbuckers a touch of single-coil-like cut. Even with the tone rolled back near minimum, the guitar stays genuinely alive and responsive, opening up almost jazz-adjacent textures with crisp pick dynamics rather than going muddy.

Aggressive Punchy Crisp Metallic

What owners of the Charvel Pro-Mod San Dimas Style 1 HH FR say

Reviewers consistently praise the factory setup and playability as genuinely excellent rather than merely adequate for the price, with the rolled fingerboard edges and forearm contour drawing specific, repeated comments. The no-load tone control's behaviour - staying musical and alive rather than turning shrill even at extreme settings - is treated as a standout, well-executed detail rather than a gimmick.

The overall verdict lands on the guitar covering far more stylistic ground than its shred-focused marketing suggests, treated as a genuine strength rather than an unexpected surprise given the brand's engineering pedigree.

Playability & handling of the Charvel Pro-Mod San Dimas Style 1 HH FR

Reviewers describe low action and a genuinely good factory setup, with rolled fingerboard edges and a forearm contour on the body adding real comfort beyond the already-fast neck profile. The satin urethane-finished Speed Neck is specifically built for rapid position shifts, and while the guitar is explicitly built for fast playing, reviewers note it feels equally at home across a wider range of styles than a pure shred-only instrument would suggest.

Recommended accessories & strings for the Charvel Pro-Mod San Dimas Style 1 HH FR

At the standard 25.5-inch scale typical of Charvel superstrats, the Floyd Rose locking system needs the same string-handling approach already covered for the EVH Wolfgang Special and Jackson Soloist SL3 elsewhere in this research - pre-cut or trimmed ball-end strings and a proper locking-nut restringing routine. The no-load tone control rewards players who actually use it as a performance tool rather than leaving it parked at maximum - rolling it back opens genuinely different textures rather than just dulling the signal.

Technical data for the Charvel Pro-Mod San Dimas Style 1 HH FR

Type Solid-body electric guitar, double cutaway (superstrat), bolt-on neck, locking floating tremolo
Production Charvel Pro-Mod series, San Dimas Style 1 line, built to recreate 1980s San Dimas, California specification
Body Alder
Neck Maple, bolt-on, graphite-reinforced, Speed Neck profile, satin urethane finish, heel-mounted truss rod wheel
Fingerboard Compound 12-16 in. radius, maple or ebony depending on finish, rolled edges, 22 jumbo frets
Pickups HH configuration; commonly specified as custom Seymour Duncan Full Shred SH-10B (bridge) with a matching custom neck unit, though specific finish/wood variants have been documented with a Seymour Duncan JB TB-4/'59 SH-1N pairing instead
Controls 3-way blade switch, volume with built-in push-pull coil-split, no-load tone control; passive
Bridge Floyd Rose 1000 Series double-locking tremolo
Weight Documented range approx. 8.05-8.4 lb (3.7-3.8 kg)
Price context Approx. $899.99-$1,099.99 street price
Origin note San Dimas, California is the actual town where Wayne Charvel's shop relocated in the 1970s, and the shop that supplied the parts Eddie Van Halen assembled into his Frankenstrat; Grover Jackson bought out Charvel's stake in the company in 1978

Price history for the Charvel Pro-Mod San Dimas Style 1 HH FR

Cheapest seen: 693 EUR  ·  Most expensive seen: 1.727 EUR

1.728 EUR692 EUR 07.09.2026 14.09.202616.09.202617.09.2026 19.09.2026
Cheapest seen Most expensive seen

The history of the Charvel Pro-Mod San Dimas Style 1 HH FR

This model's name documents real geography rather than invented brand mythology. Wayne Charvel ran a guitar repair and parts shop in Azusa, California starting in the mid-1970s, then relocated after about a year to San Dimas - the town now widely credited as the actual birthplace of the shredder guitar. Grover Jackson bought out Charvel's interest in the company in 1978, the same Grover Jackson who went on to found the standalone Jackson brand covered elsewhere in this research.

The San Dimas shop's most famous customer never bought a finished guitar there at all. Eddie Van Halen picked up parts from Charvel to assemble what became the Frankenstrat, and the story is documented in strikingly direct terms from someone at the shop: "I gave Eddie Van Halen the parts, and the next time I saw the guitar he had used a spray can to paint it white with black stripes." A tech known as Sandoval, who regularly worked on Van Halen's guitars, is credited with introducing him to Charvel's shop in the first place - and with turning him on to using a Variac voltage regulator with his amps, a device Van Halen long credited as part of what created his signature brown sound.

Wayne Charvel's work at that shop laid direct groundwork for what the industry now calls the superstrat: a Stratocaster-descended double-cutaway body modified with high-output pickups, flatter fingerboards for speed, and heavy-duty tremolo systems. The current San Dimas Style 1 line, including this Pro-Mod HH FR, is an explicit callback to the original guitars Charvel built in that town during the 1980s - the rounded hot-rodded-Strat body contour, 22-fret bolt-on neck and Floyd Rose locking tremolo all trace back to that specific place and period rather than a generalised vintage impression.

About Charvel as a manufacturer

Charvel occupies a specific, load-bearing position in electric guitar history: not the brand most players associate directly with Eddie Van Halen (that's usually EVH/Peavey/Music Man, already covered elsewhere in this research), but the actual parts supplier behind the single most influential DIY guitar build in rock history. That makes Charvel's own identity genuinely rooted in being where the superstrat concept was physically assembled for the first time, rather than a later company that simply copied the format once it became popular.

Like Jackson, Charvel has passed through the same corporate ownership changes common to boutique-turned-mainstream brands, but the San Dimas Style 1 line specifically leans on geographic and historical authenticity - the actual town, the actual shop lineage - as its core marketing and design logic, rather than a generic vintage-inspired story.

Notable players & recordings featuring the Charvel Pro-Mod San Dimas Style 1 HH FR

Eddie Van Halen is the towering figure behind Charvel's whole identity, but it's worth being precise about the actual connection: he assembled his own Frankenstrat from parts sourced at Charvel's shop rather than buying a finished Charvel guitar, and certainly not this specific modern Pro-Mod model. No verified professional endorsement ties a current touring artist directly to this particular San Dimas Style 1 HH FR configuration.
